MSRPNOW $21,099! (was $22,399)
Destination Charge $1,395
Dealer sets the actual destination charge, your price may vary.
Specifications and pricing are subject to change.
MODEL SPECS |
Click on a technology to learn more.
| Engine Management Technology |
| Chassis Management Technology |

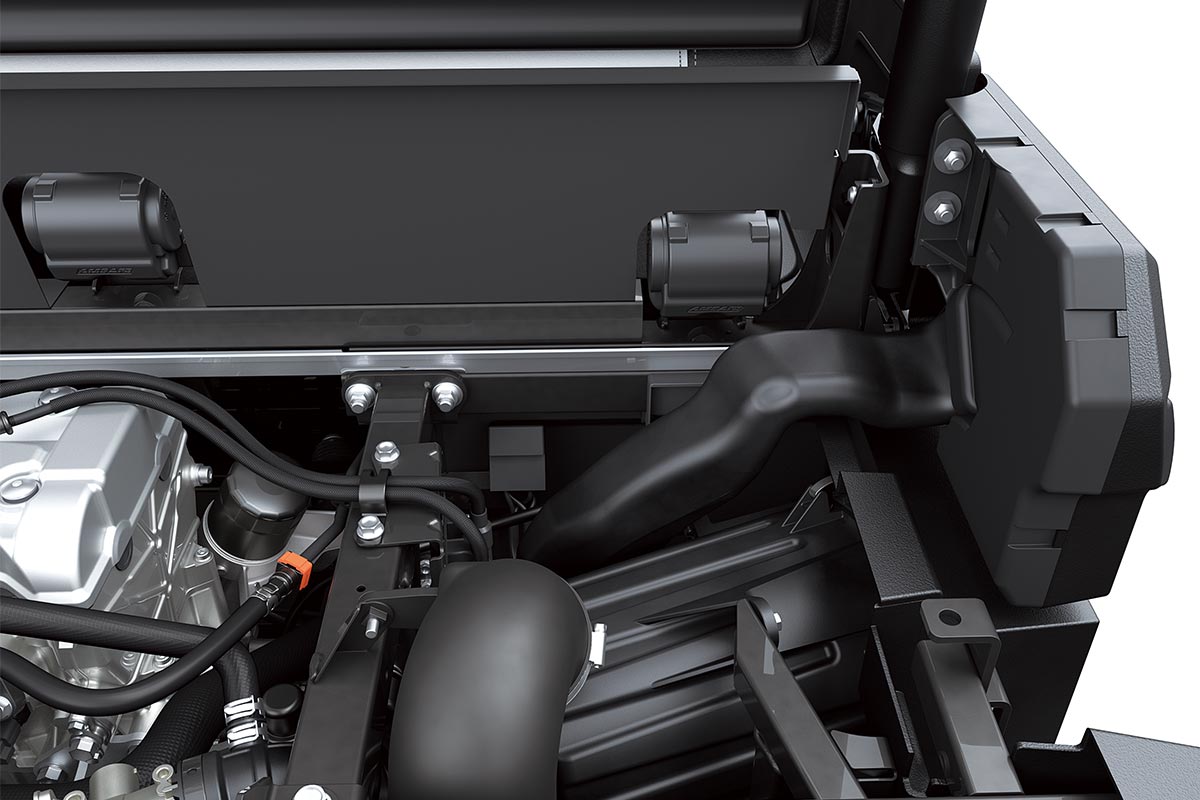

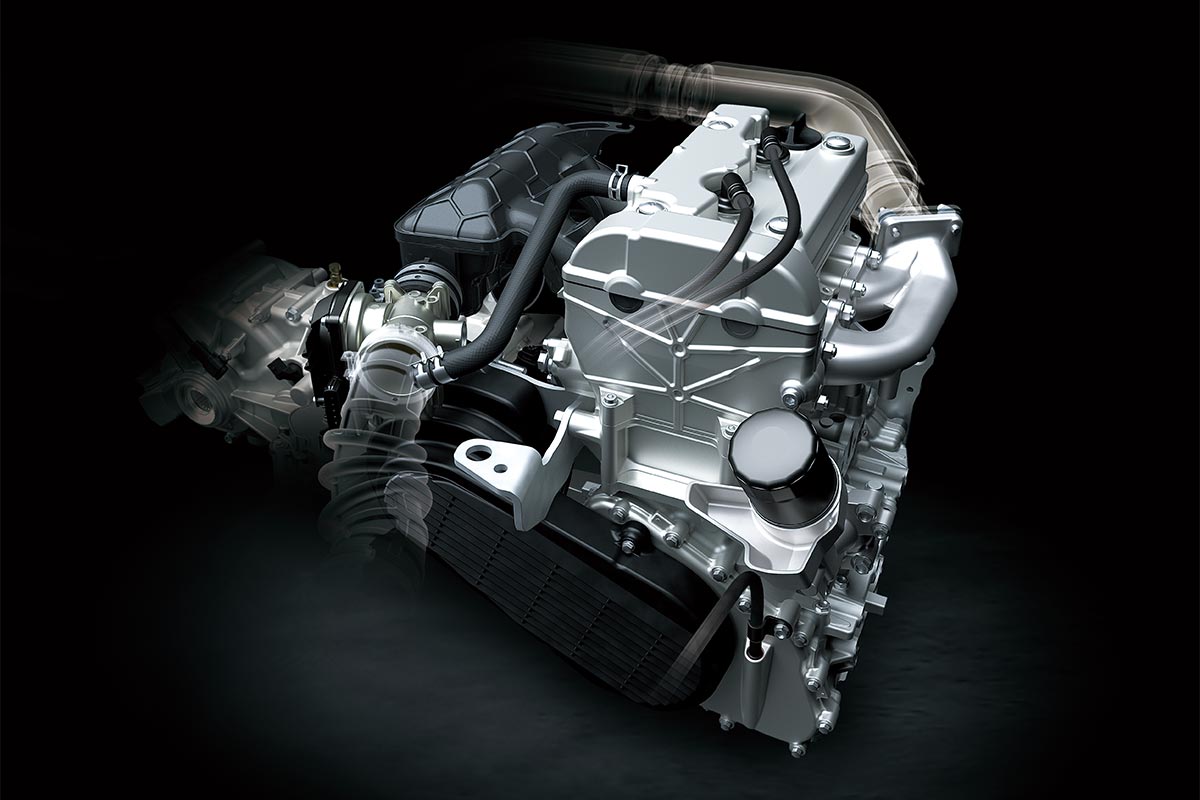

| Engine | 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin |
| Bore x Stroke | 92.0 x 75.1 mm |
| Compression Ratio | 10.1:1 |
| Fuel System | Fuel injection: ø38 mm x 1 |
| Ignition | Digital |
| Starting | Electric |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual-range (high/low) CVT with reverse |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |

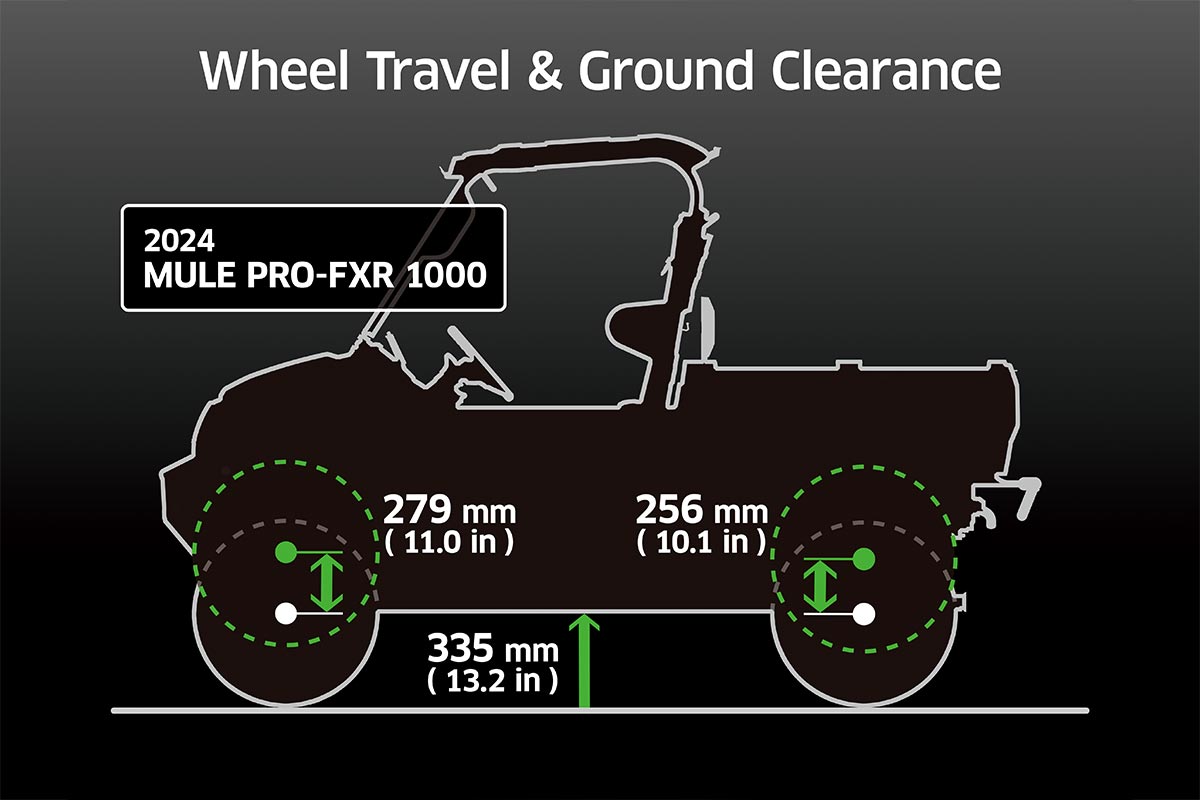

| Front Suspension / Wheel Travel | Double wishbone / 279 mm (11.0 in) |
| Rear Suspension / Wheel Travel | Double wishbone / 256 mm (10.1 in) |
| Steering | Rack and pinion with Electric Power Steering |
| Rake / Trail | 3.7° / 21 mm |
| Steering Angle (L/R) | 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT) |
| Front Tires | 27 x 9.00-12 6PR |
| Rear Tires | 27 x 11.00-12 6PR |
| Front Brakes | Dual ø212 mm discs with two-piston calipers |
| Rear Brakes | Dual ø212 mm discs with single-piston calipers |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (LxWxH) | 3,100 x 1,625 x 1,995 mm (122.0 x 64.0 x 78.5 in) |
| Wheelbase | 2,025 mm (79.7 in) |
| Road Clearance | 310/335 mm (standard/max preload) (12.2/13.2 in (standard/max preload)) |
| Seat Height | 930 mm (36.6 in) |
| Curb Mass** | 792 kg (1,746 lb) |
| Estimated Dry Weight | 758 kg (1,671 lb) |
| Fuel Capacity | 30 litres |
| Tread (F/R) | 1,373 mm (54.1 in) / 1,307 mm (51.5 in) |
| Turning Radius | 4.3 m (14.1 ft) |
| Cargo Bed Dimensions (LxWxH) | 955 x 1,355 x 280 mm (37.6 x 53.3 x 11.0 in) |
| Cargo Bed Capacity | 453 kg (1,000 lb) |

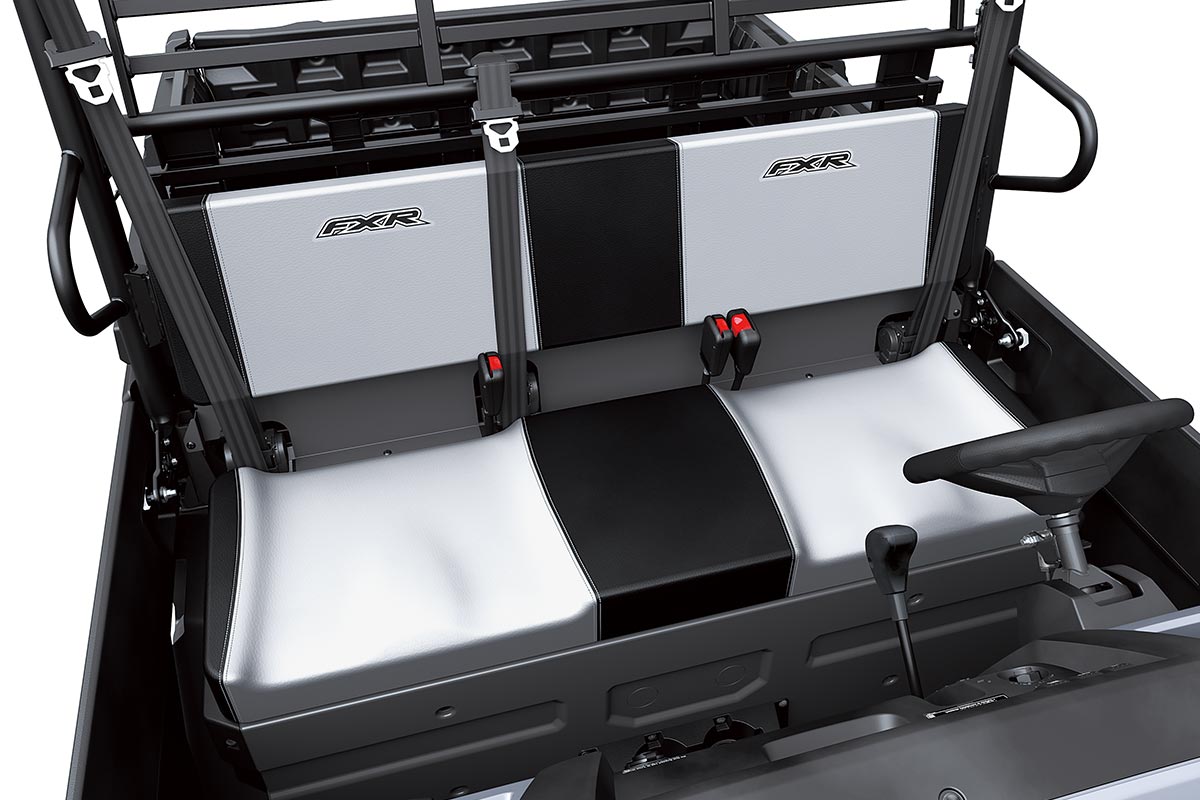

| Seating Capacity | 3 |
| Vehicle Load Capacity | 733 kg (1,616 lb) |
| Towing Capacity | 907 kg (2,000 lb) |
| Lighting | 2x halogen, 2x LED headlights |

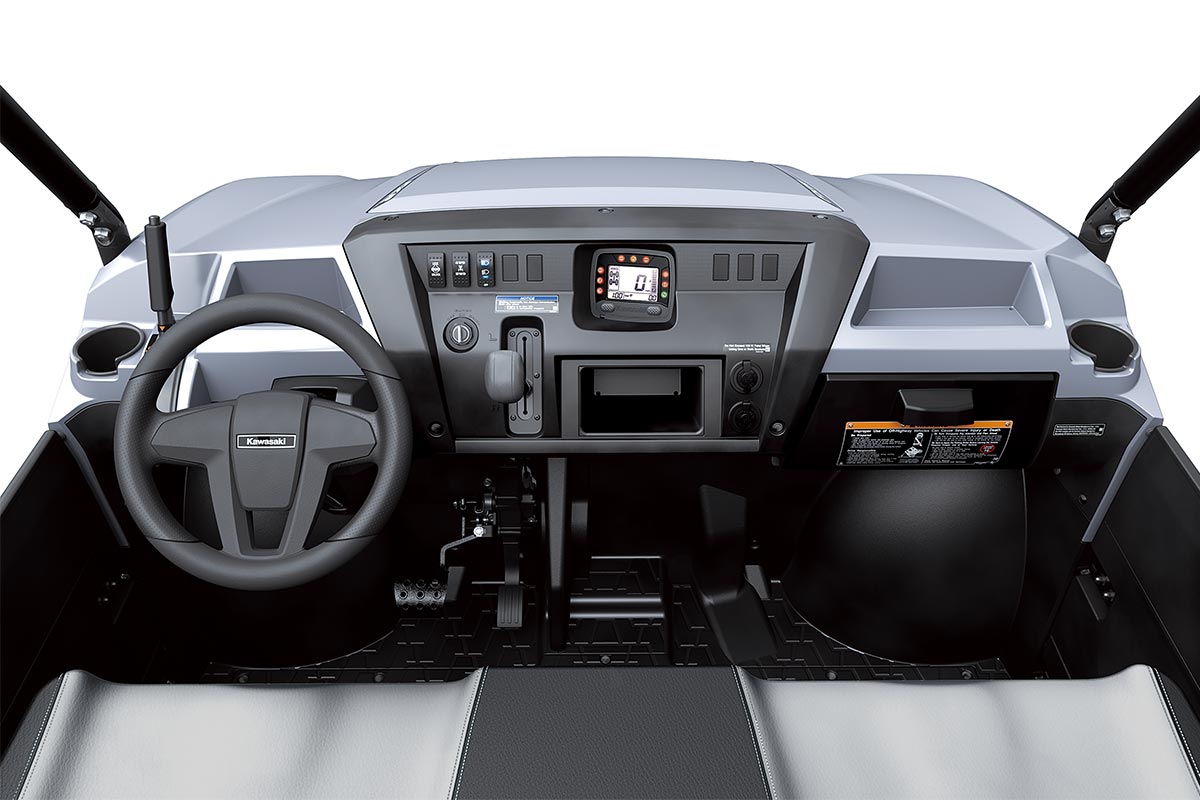

| Instrumentation | Multi-function display includes driving mode (2WD/4WD) indicator, digital speedometer, digital fuel gauge, clock, odometer, dual trip meters, hour meter, and various warning lamps |
| Warranty | 36 months |
| Kawasaki Protection Plus | 12 / 24 / 36 / 48 months |
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2020 Canadian Kawasaki Motors, Inc.
Specifications subject to change.
FIND A KAWASAKI DEALER IN YOUR AREA
Dealer Name, Postal Code or City, Province
SIMILAR MODELS |
3-PASSENGER
MULE PRO-FX 1000
MULE PRO-FX
MULE PRO-DX DIESEL
MULE PRO-FXR
Kawasaki’s fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions.
Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
ELECTRONIC THROTTLE VALVES
