MODEL SPECS |

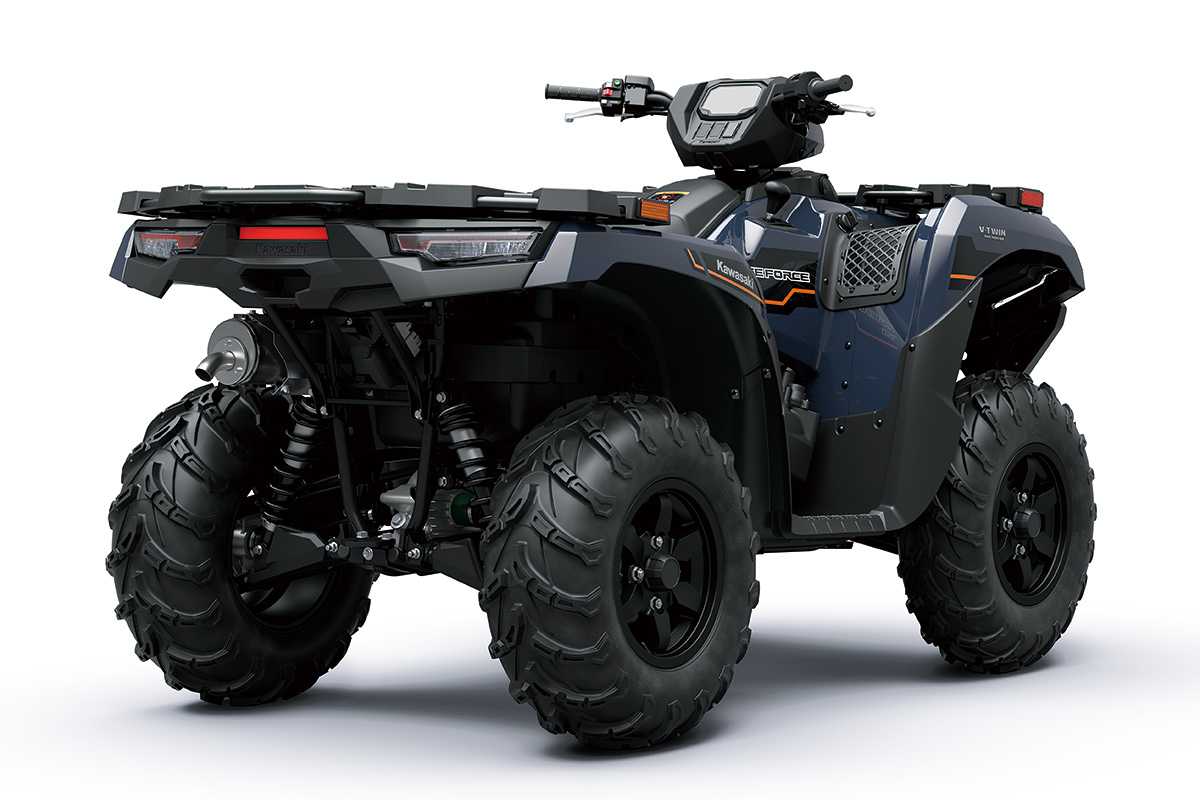

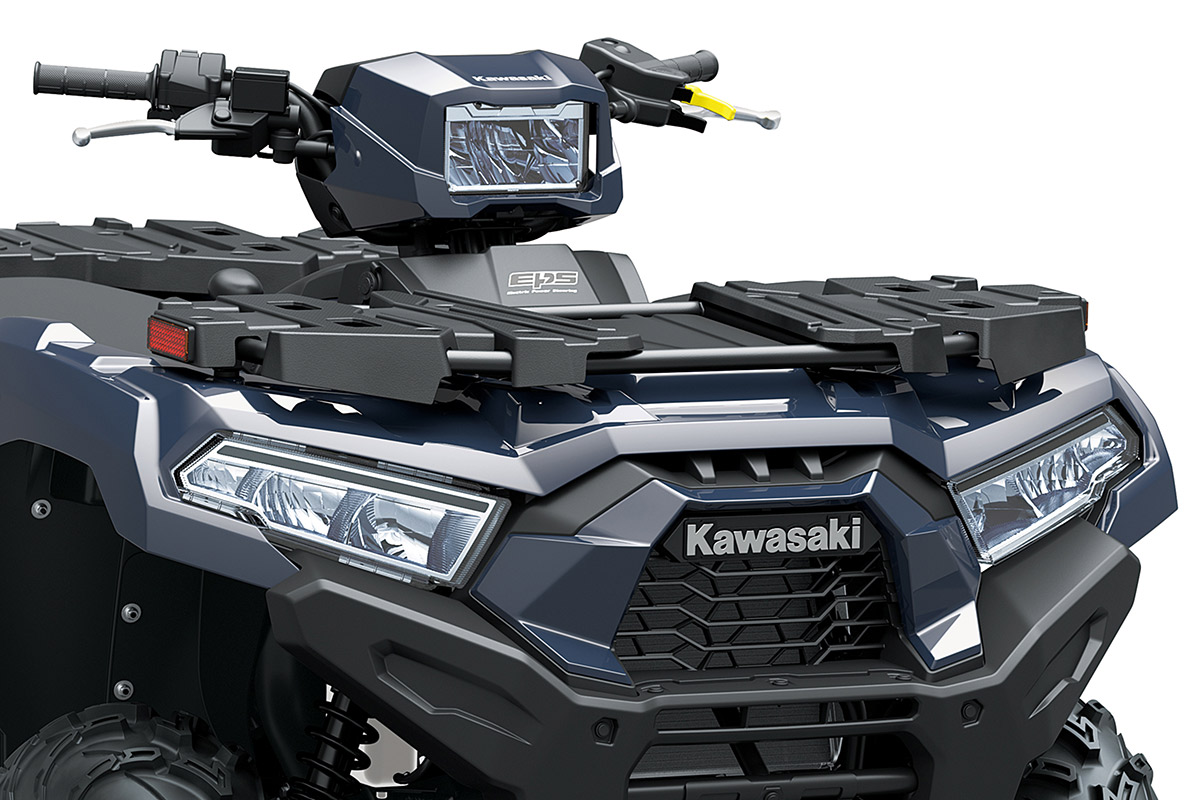

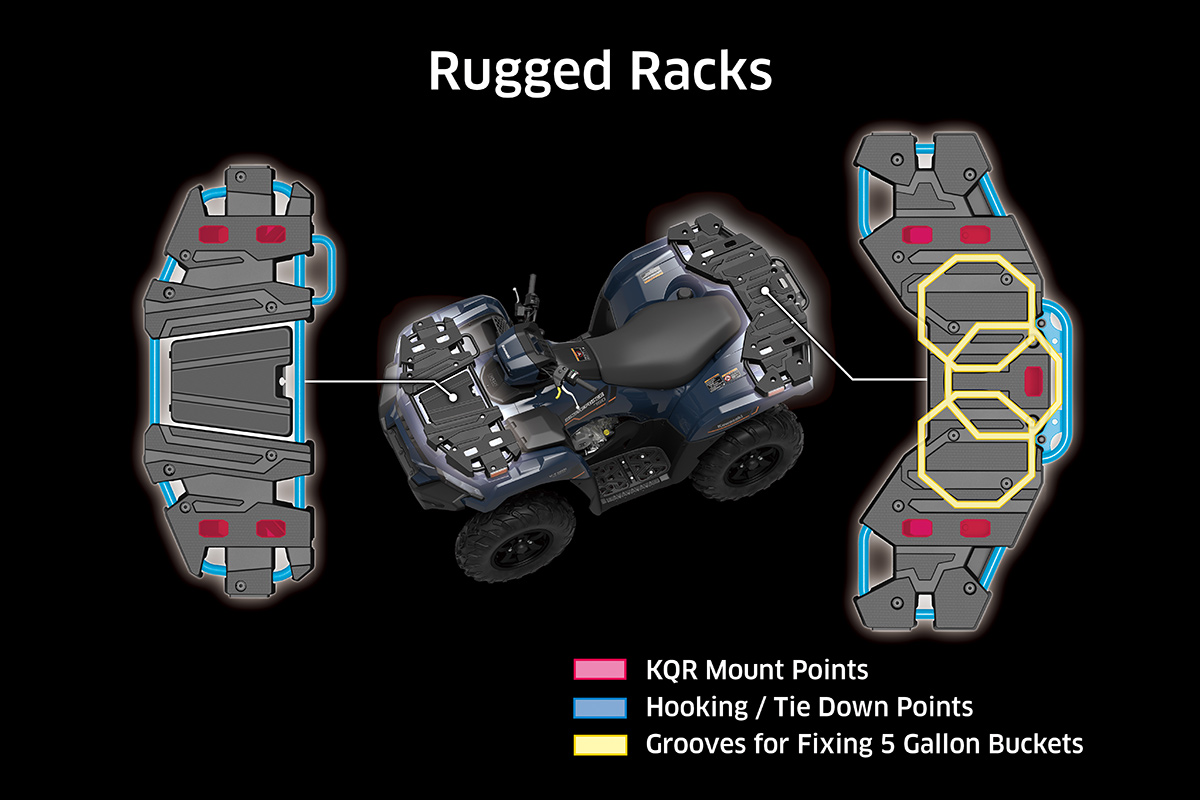

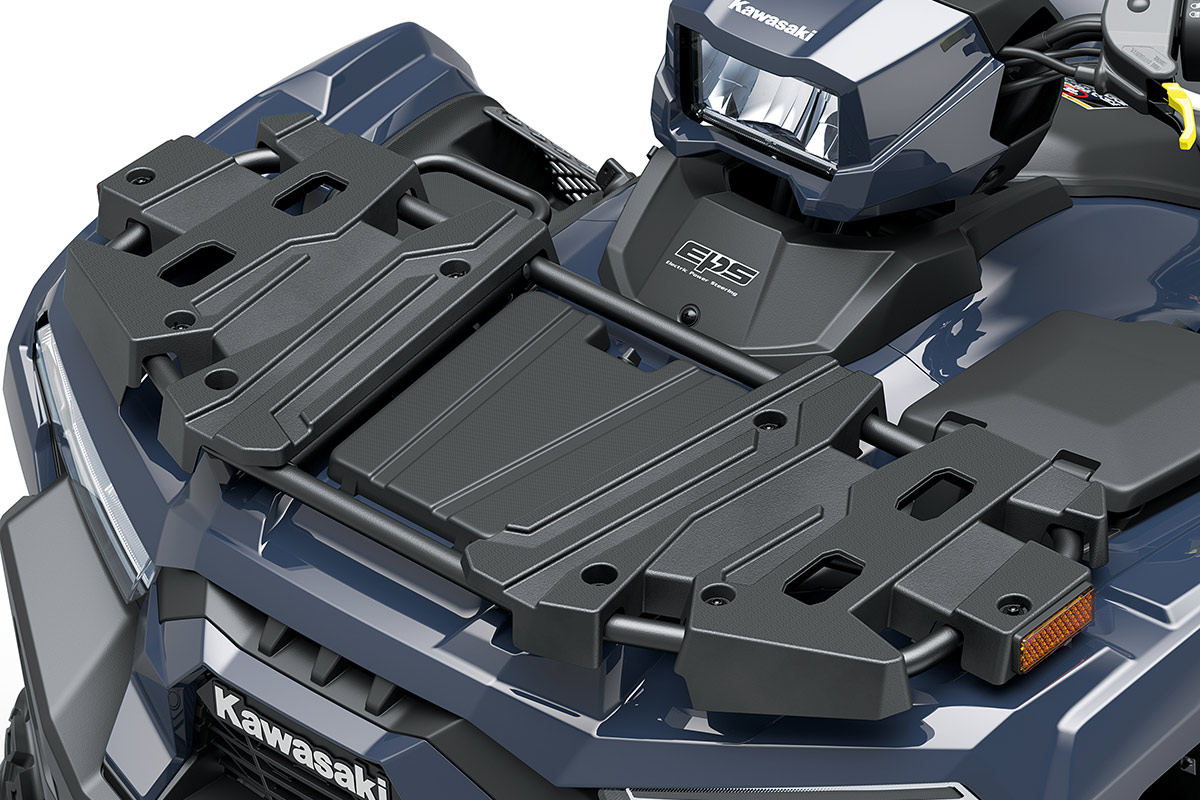

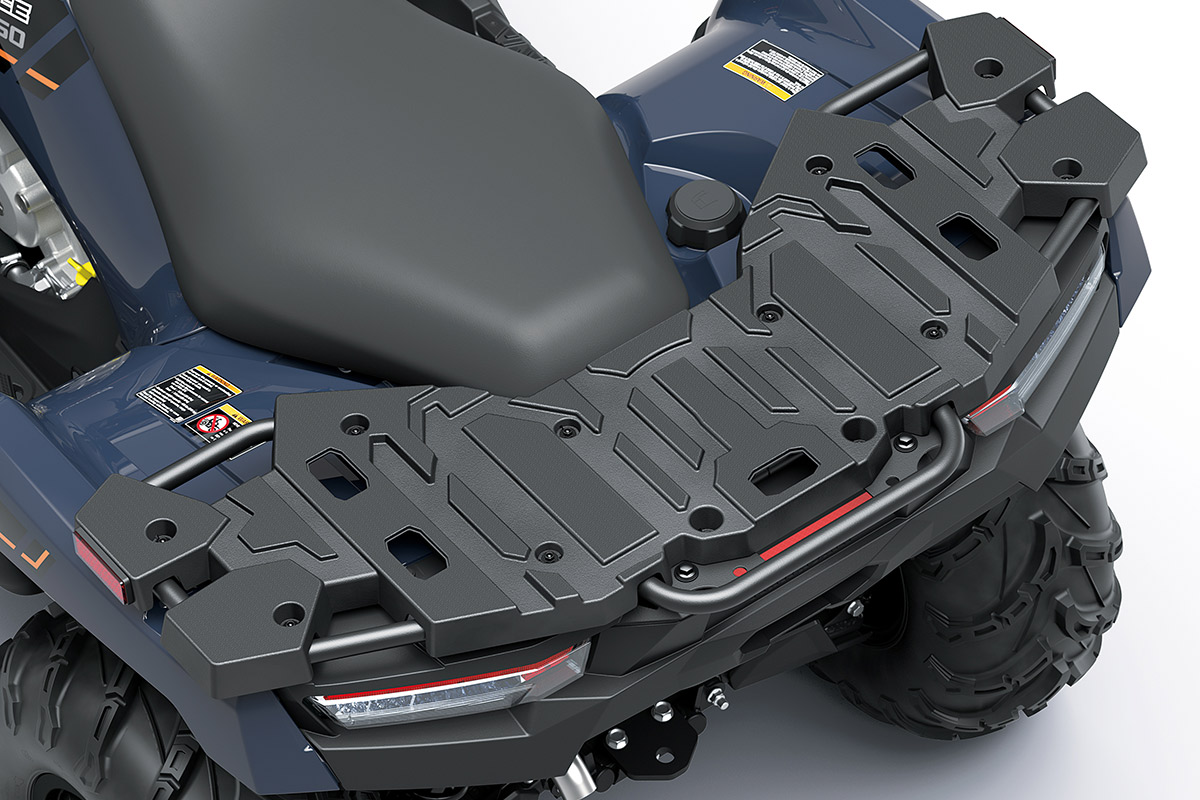

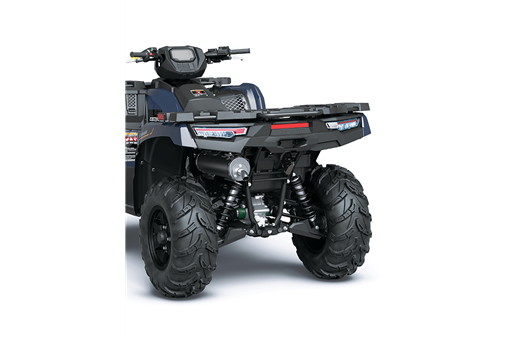

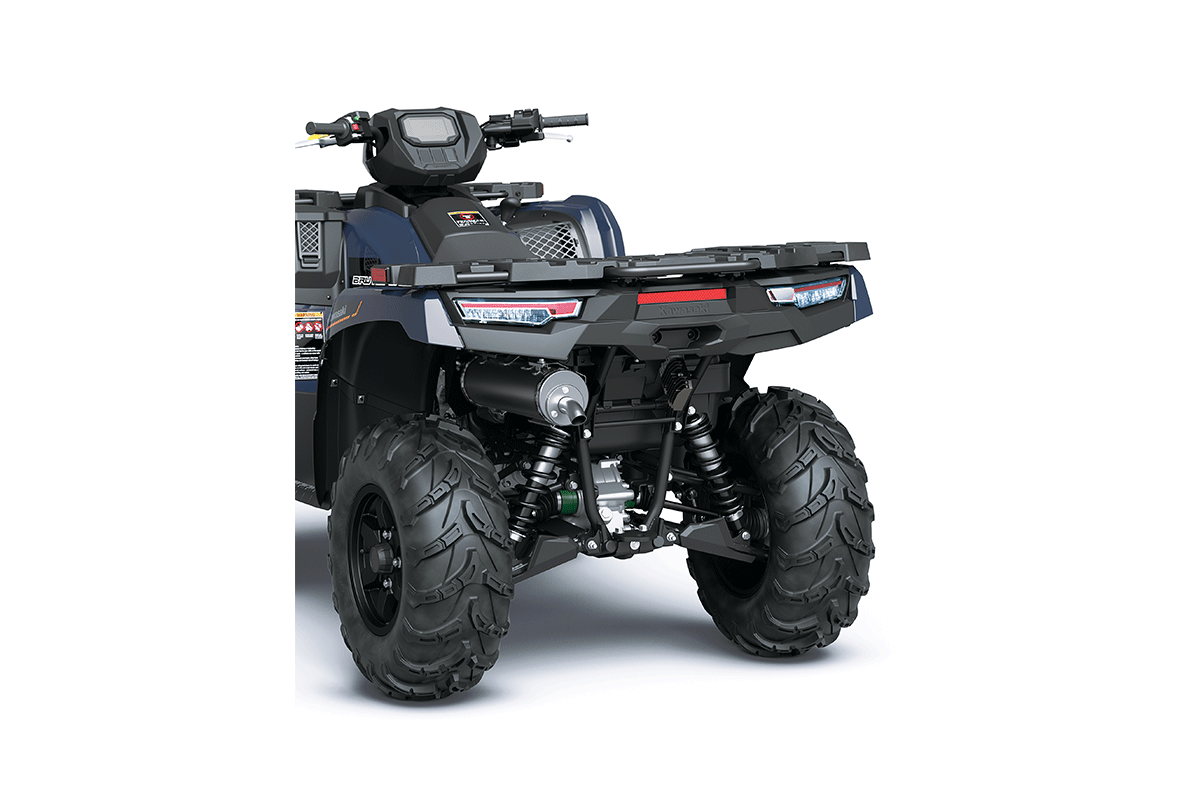

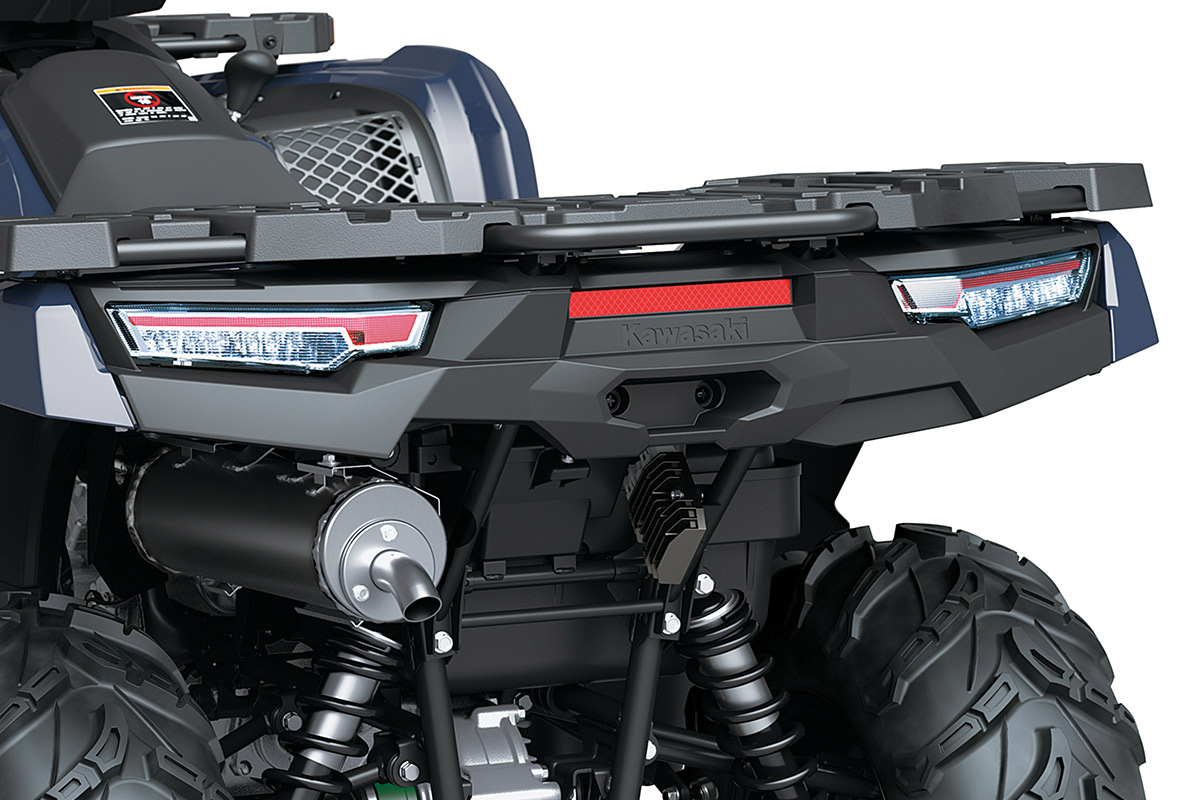

Rugged racks with

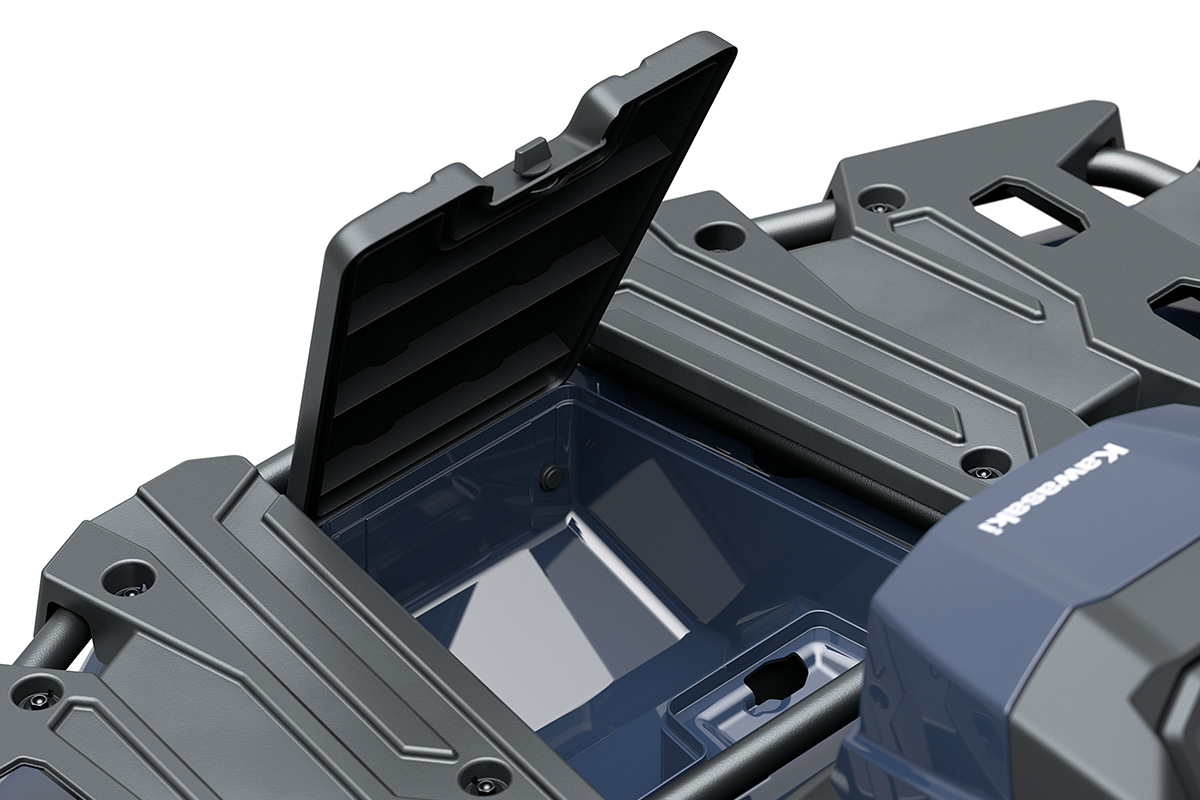

Plastic cargo rack covers

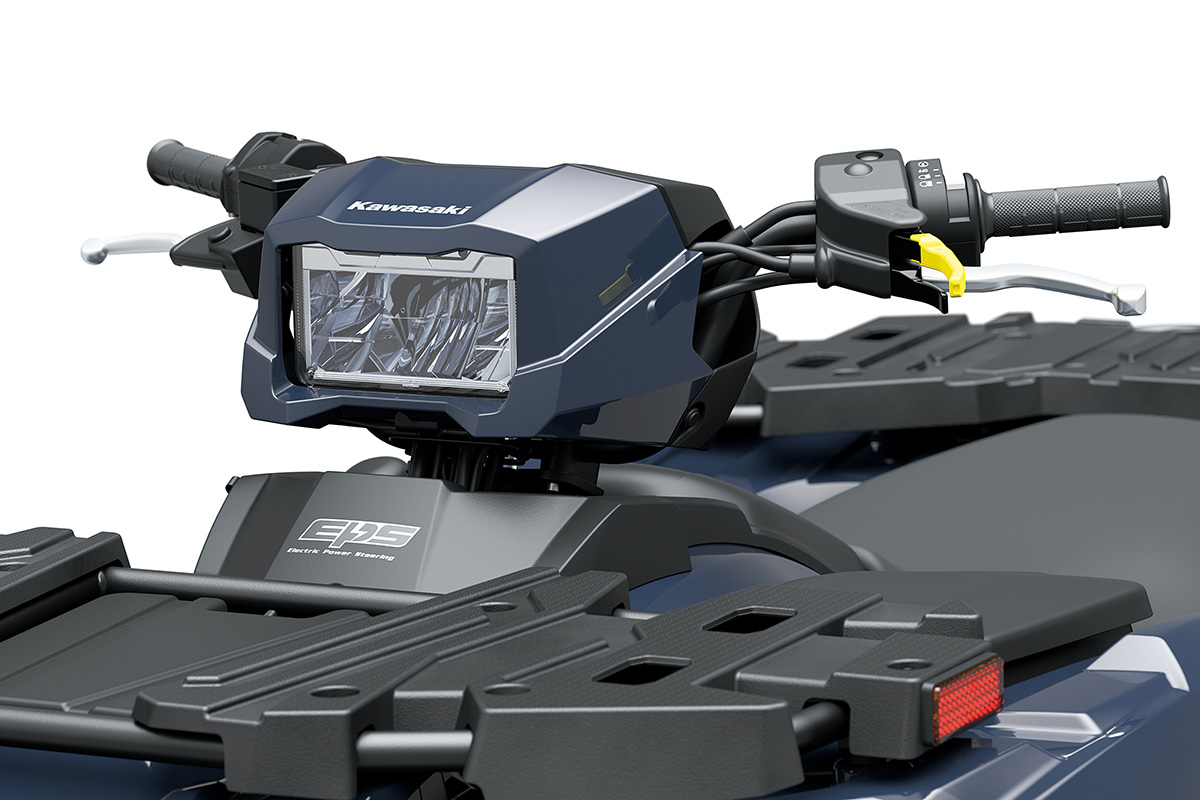

Speed-sensitive
Electric Power Steering (EPS)
| Engine | 749cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder 90° V-twin |
| Bore x Stroke | 85.0 x 66.0 mm |
| Compression Ratio | 9.3:1 |
| Fuel System | Fuel injection: ø34 mm x 2 |
| Ignition | Battery & coil (transistorized ignition) |
| Starting | Electric |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual range CTV with reverse |
| Final drive | 2WD/4WD, shaft |
| Frame | Double cradle, high-tensile tubular steel |

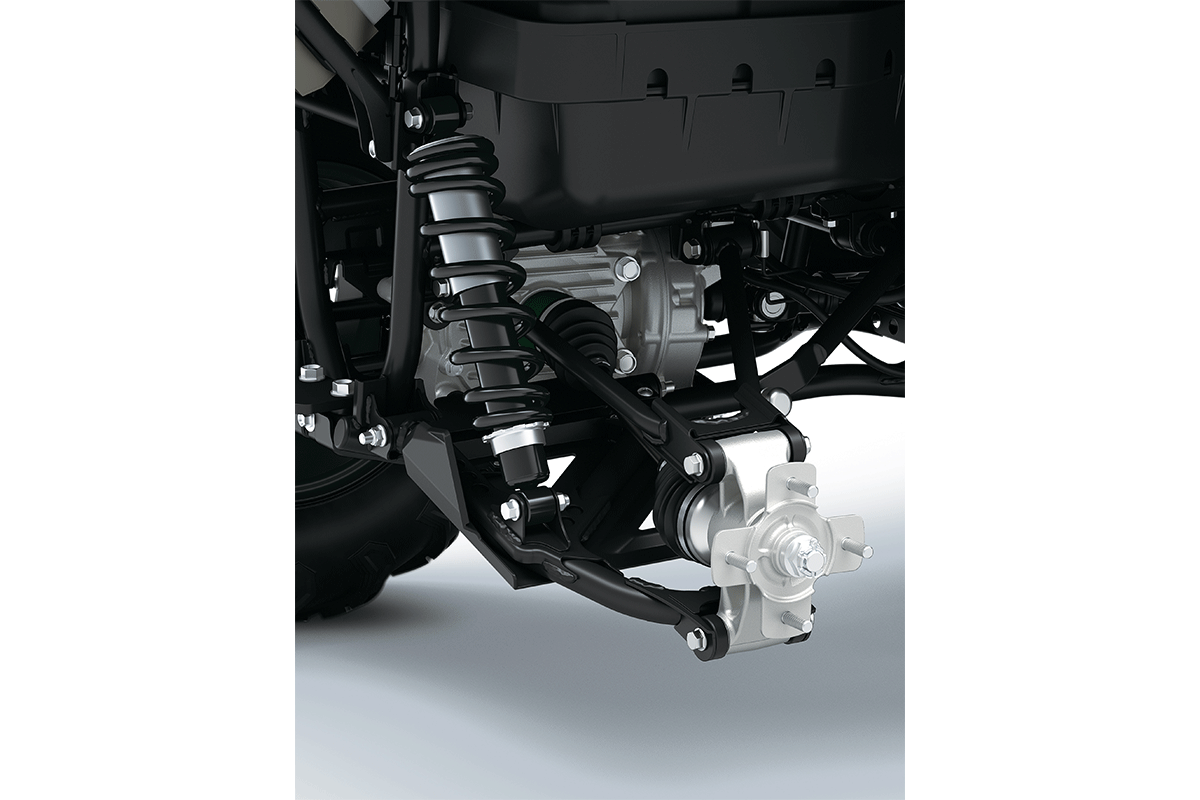

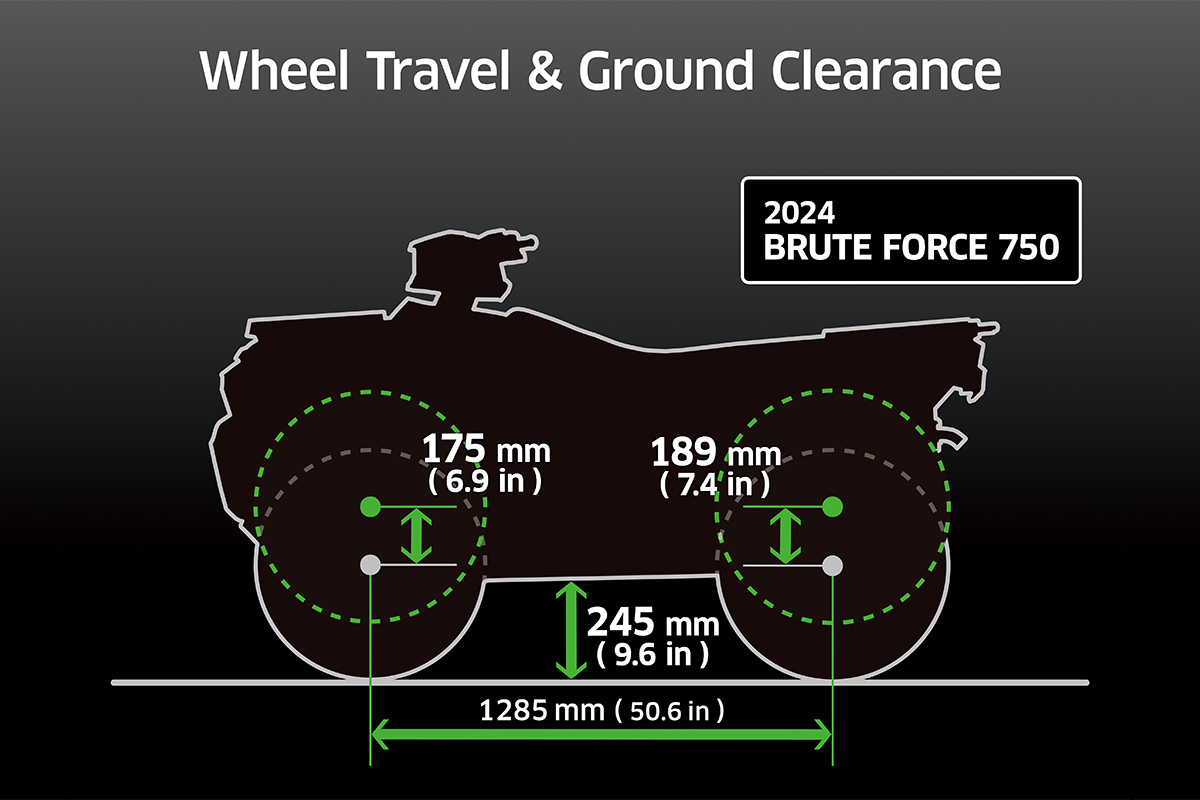

| Front Suspension / Wheel Travel | Double wishbone with adjustable preload / 175 mm (6.9 in) |

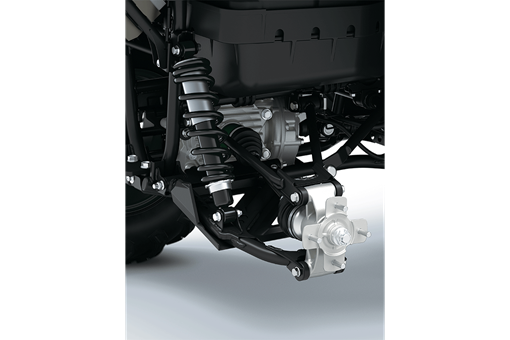

| Rear Suspension / Wheel Travel | Double wishbone with adjustable preload / 189 mm (7.4 in) |
| Rake / Trail | 2° / 10 mm |
| Steering Angle (L/R) | 47° / 47° |

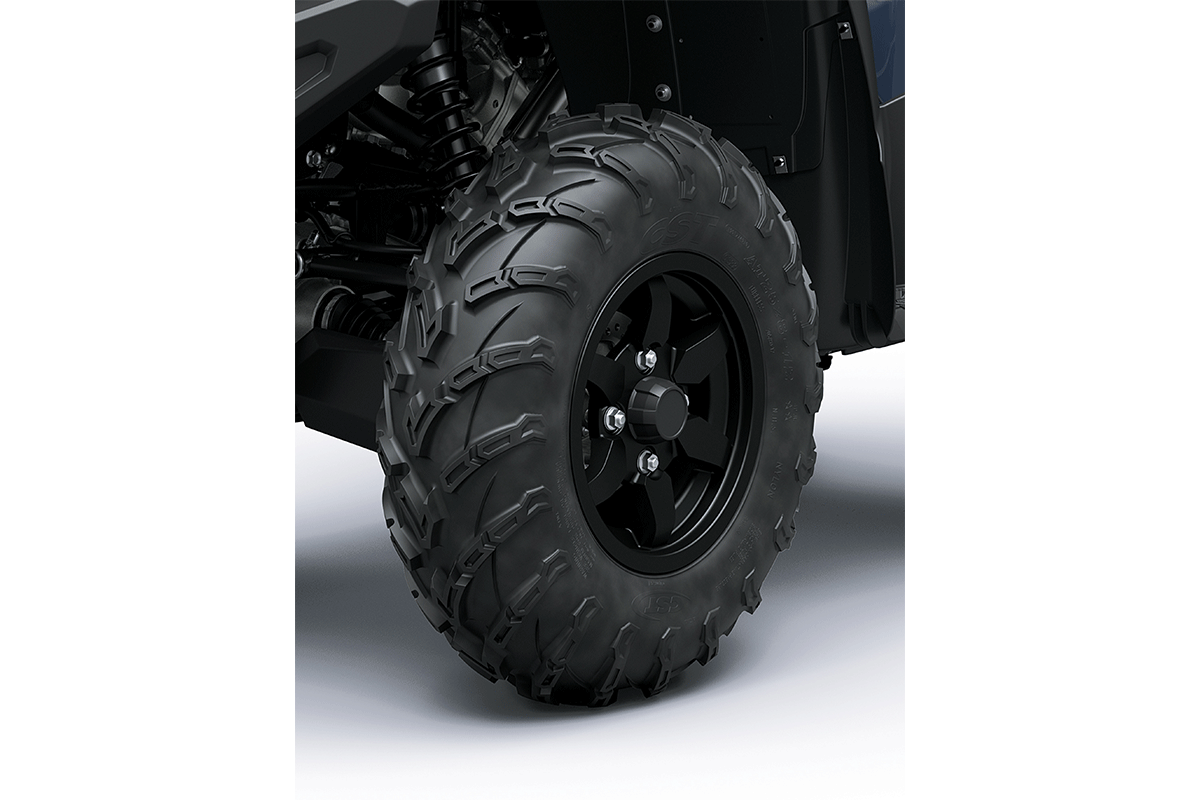

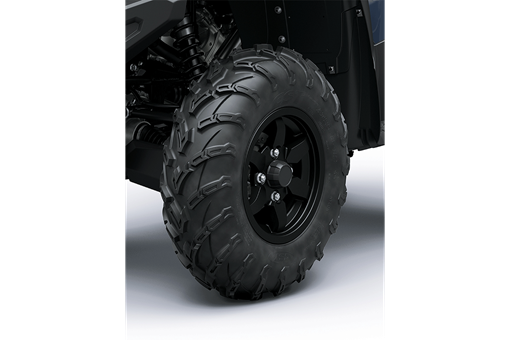

| Front Tires | AT 25 x 8-12 |
| Rear Tires | AT 25 x 10-12 |

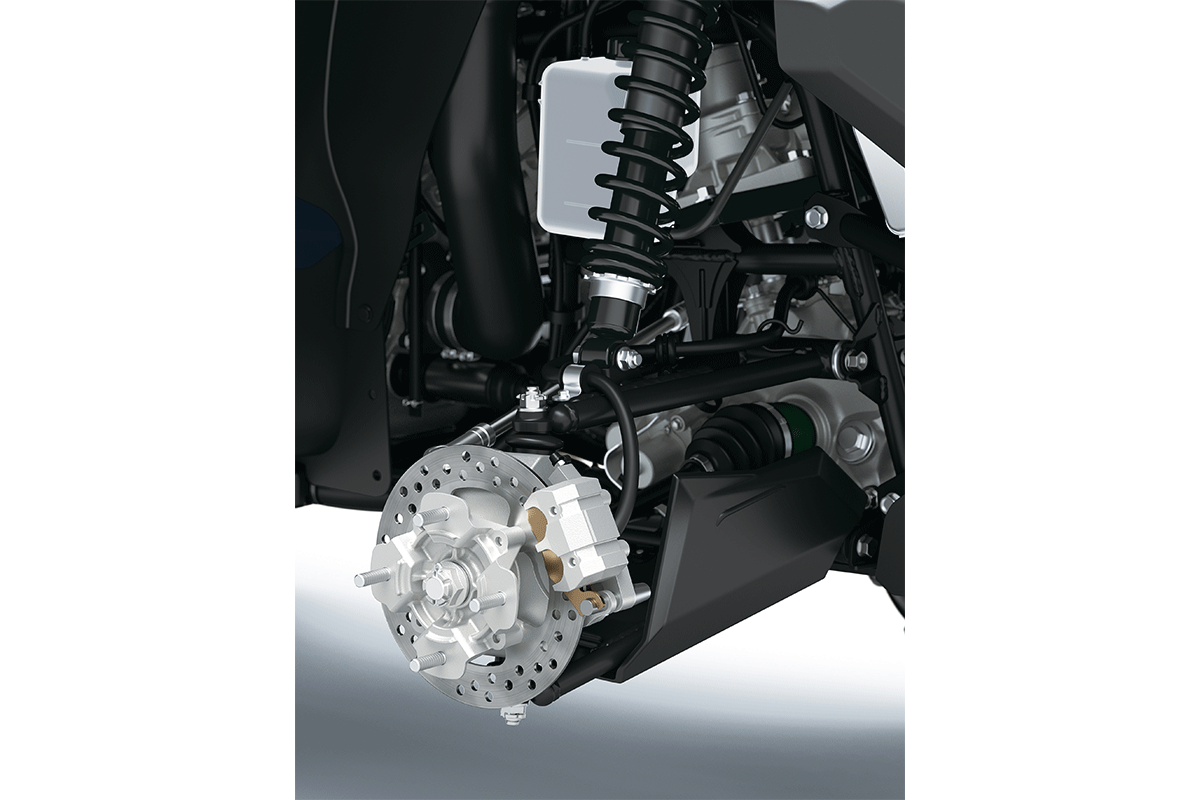

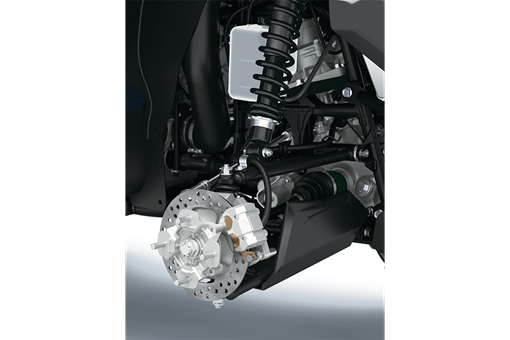

| Front Brakes | Dual ø200 mm discs with two-piston calipers |
| Rear Brake | Enclosed wet multi-plate |
| Parking Brake | Enclosed wet multi-plate |
| Dimensions (LxWxH) | 2,185 x 1,170 x 1,210 mm (86.0 x 46.0 x 47.6 in) |
| Wheelbase | 1,285 mm (50.6 in) |
| Road Clearance | 228/245 mm (standard/max preload) (9.0/9.6 in (standard/max preload)) |

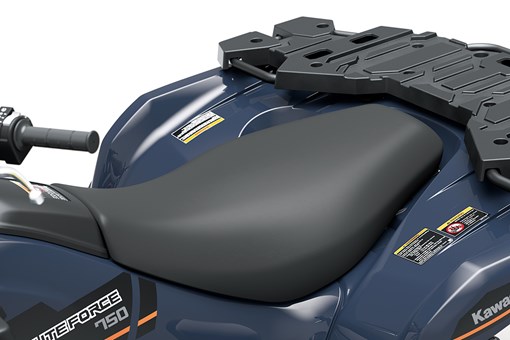

| Seat Height | 895 mm (35.2 in) |
| Curb Weight* | 332 kg (732 lb) |
| Estimated Dry Weight** | 311 kg (686 lb) |
| Fuel Capacity | 19 litres |
| Tread (L/R) | 940 mm (37.0 in) / 905 mm (35.6 in) |

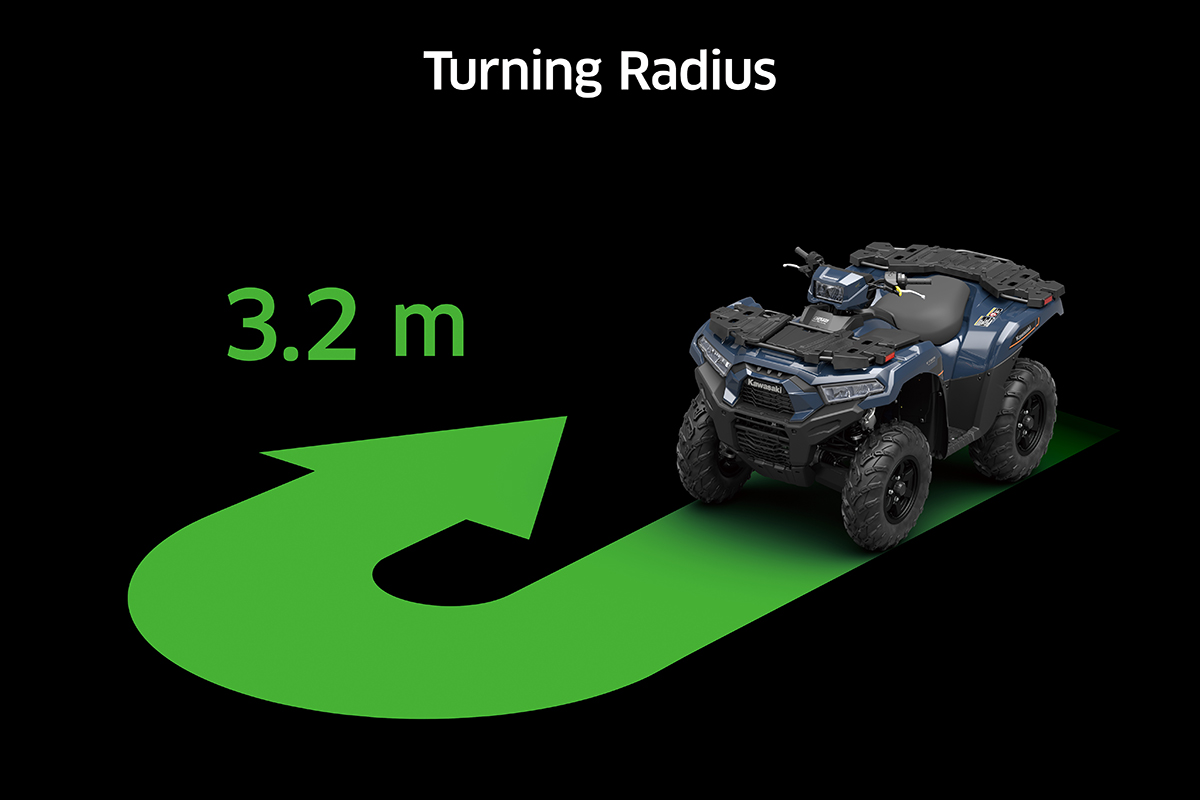

| Turning Radius | 3.2 m (10.5 ft) |
| Towing Capacity | 567 kg (1,250 lb) |

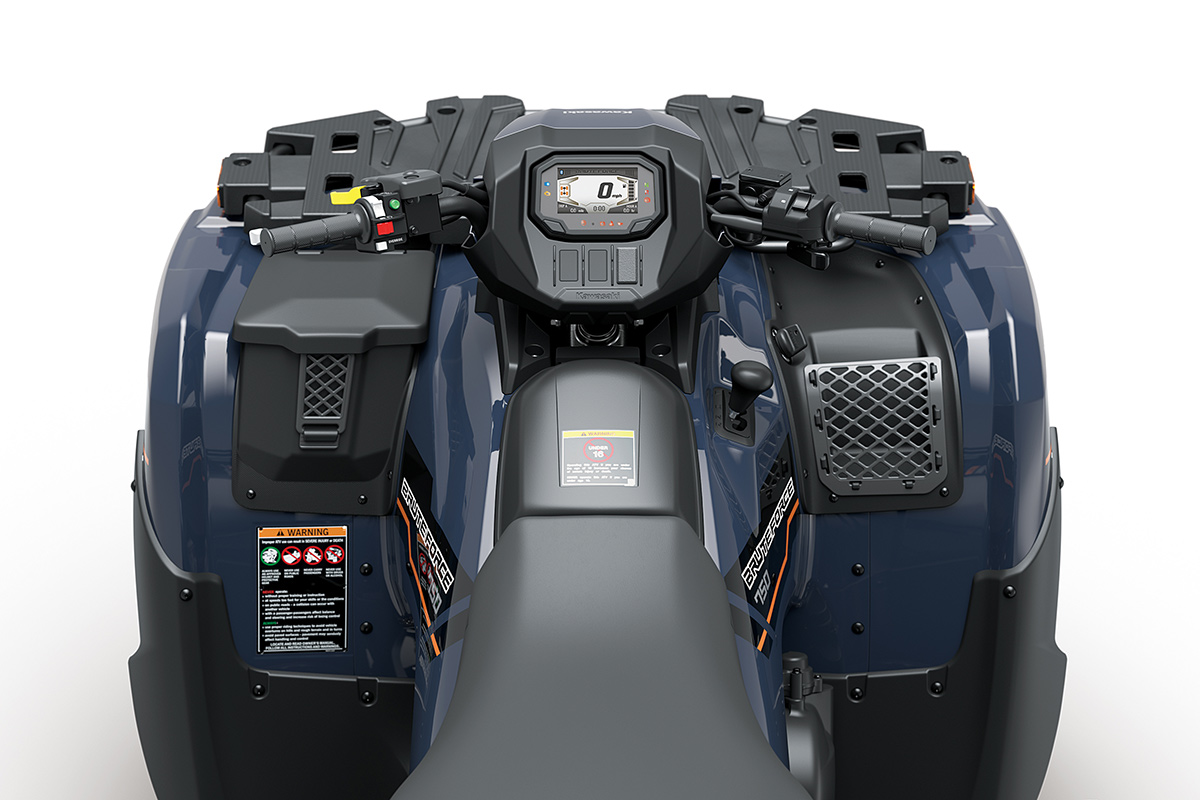

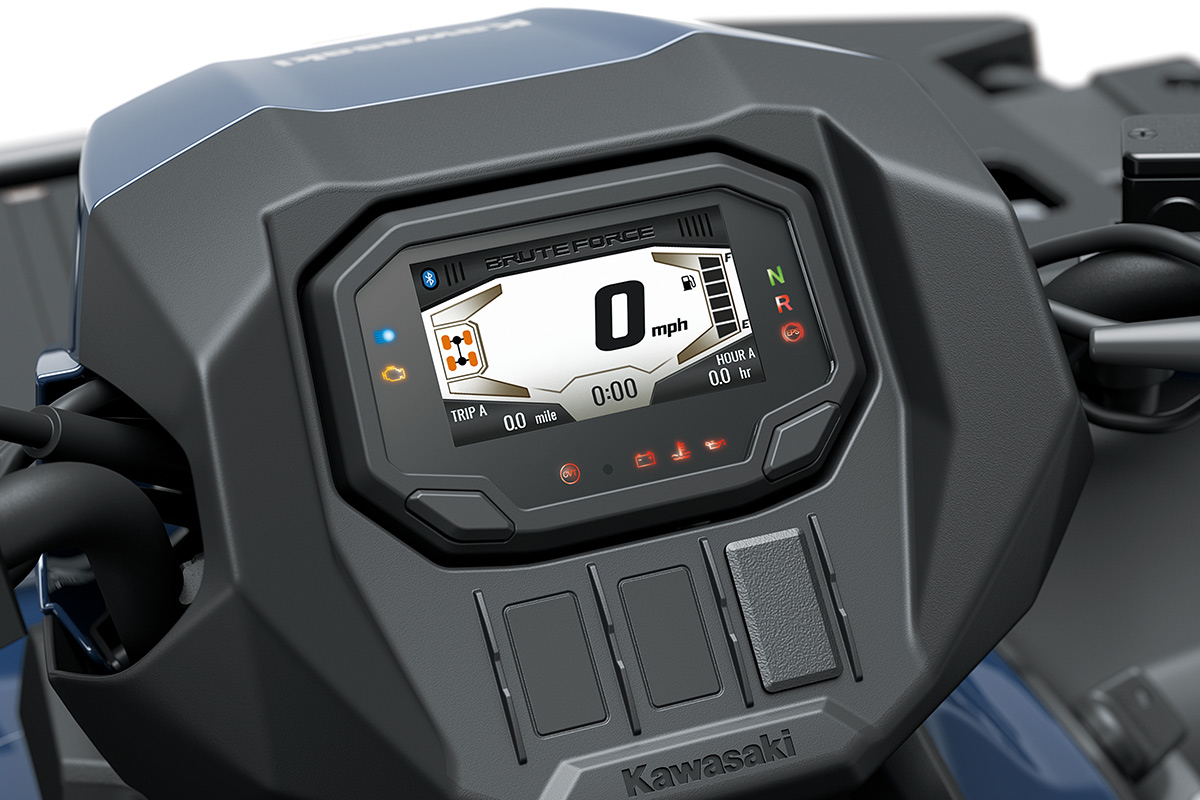

| Instrumentation | 4.3” high-grade full-colour TFT LCD screen with digital speedometer, 2WD/4WD drive indicator, fuel gauge, odometer, dual trip meters, dual hour meter, clock (12h/24h), battery voltage, Kawasaki service reminder, oil change reminder, and a range of indicators and warning lamps |
| Warranty | 12 months |
| Kawasaki Protection Plus | 12 / 24 / 36 / 48 months |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2020 Canadian Kawasaki Motors, Inc.
Specifications subject to change.
