KLX140R L

Fun Begins with the Push of a Button

  • MSRP
    $4,649

Destination Charge $295

Dealer sets the actual destination charge, your price may vary.

Specifications and pricing are subject to change.

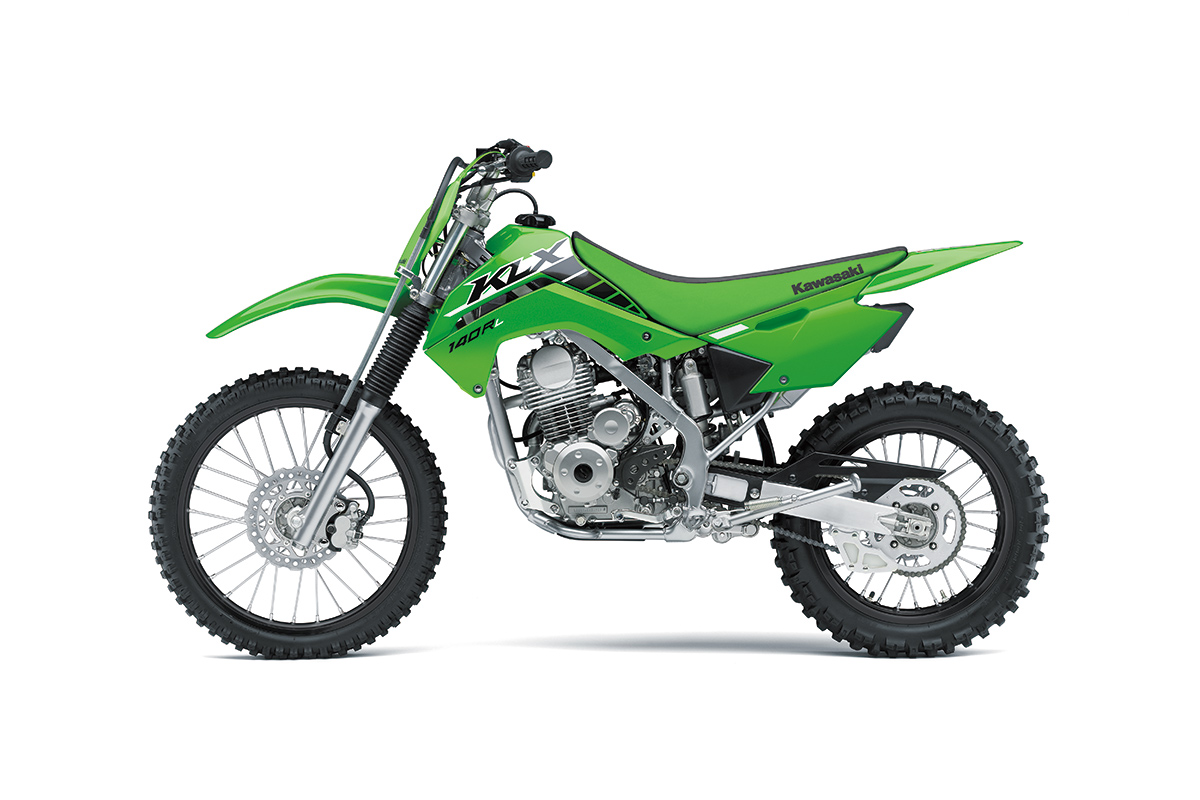

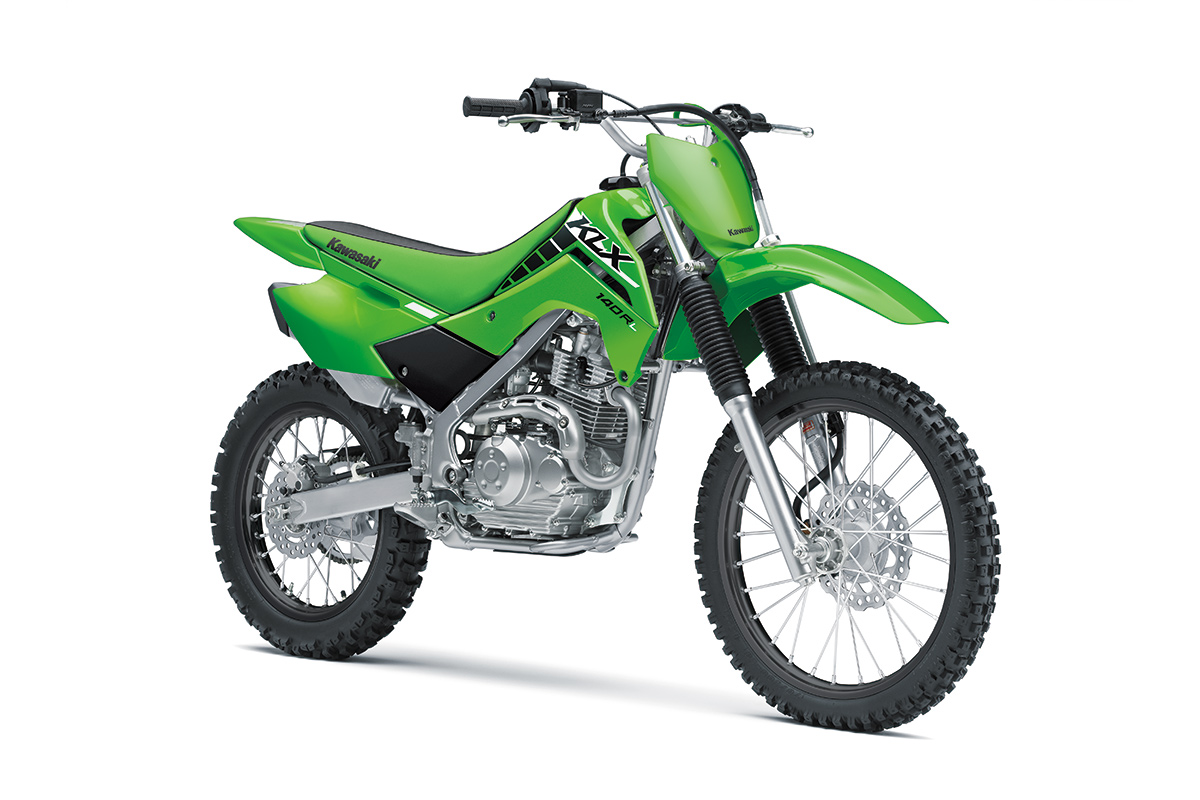

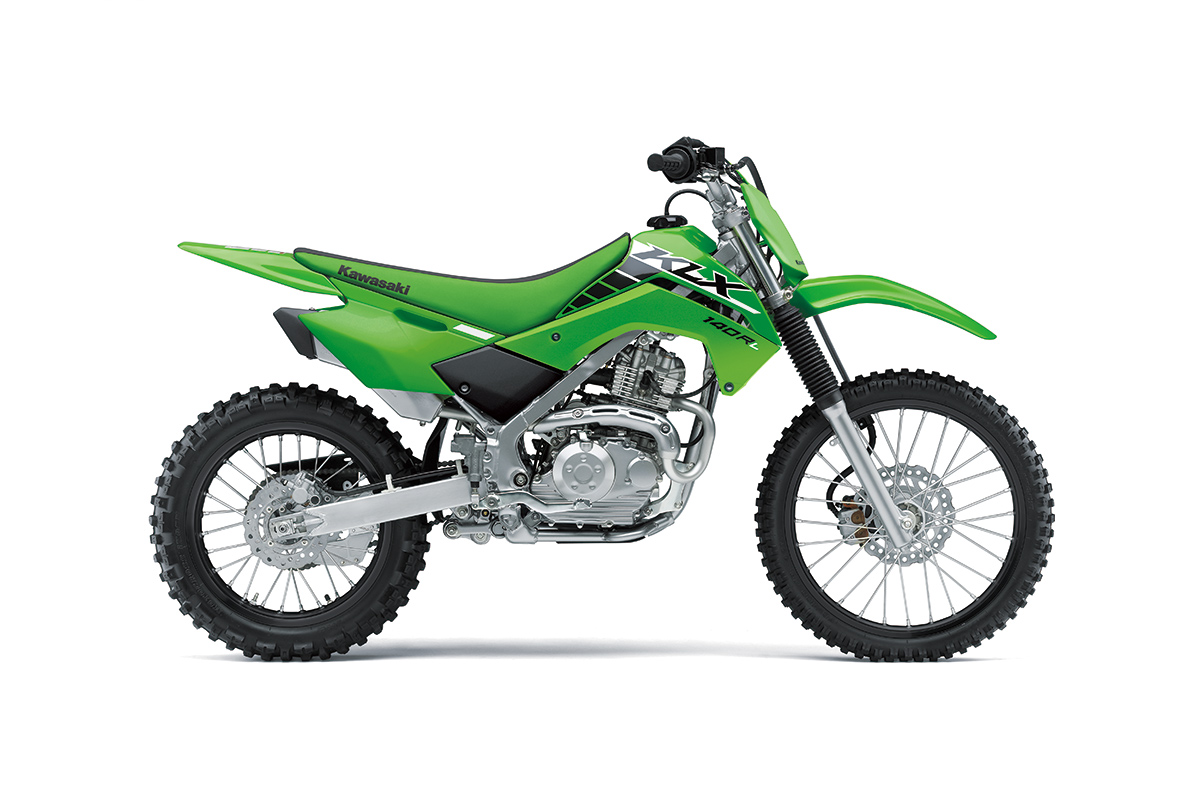

Lime Green

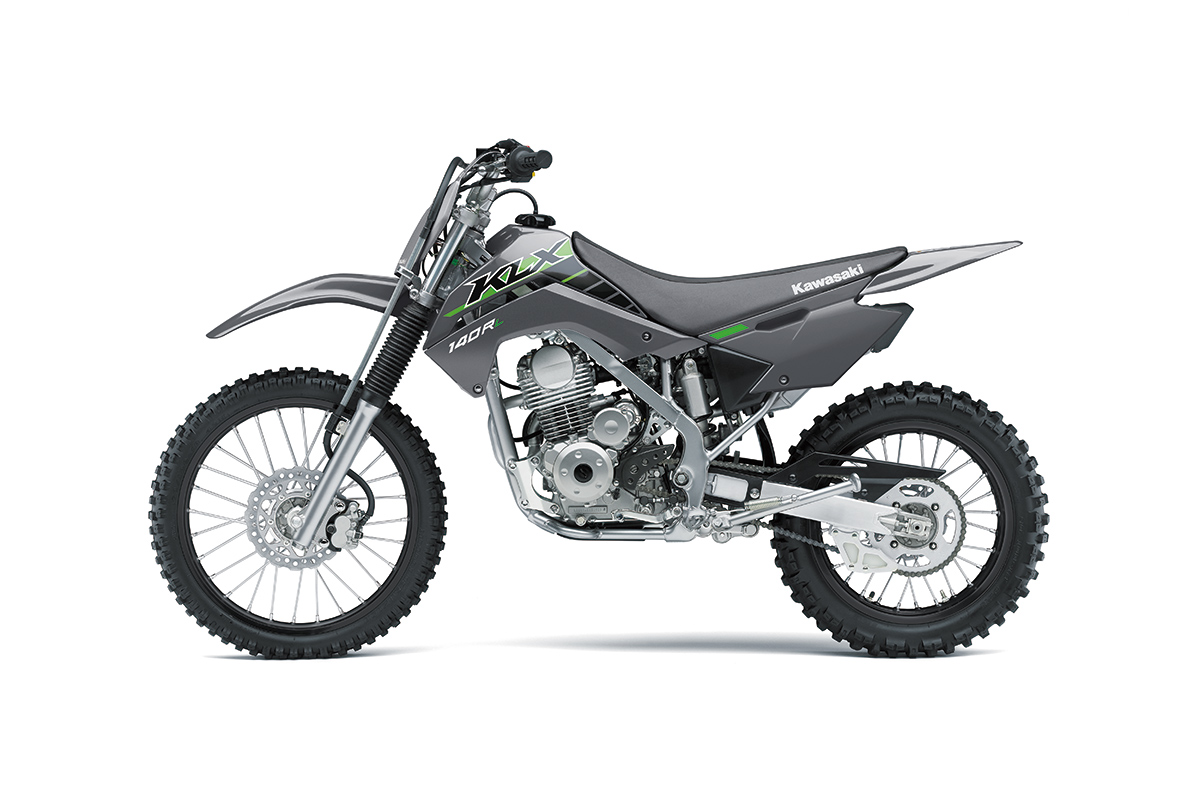

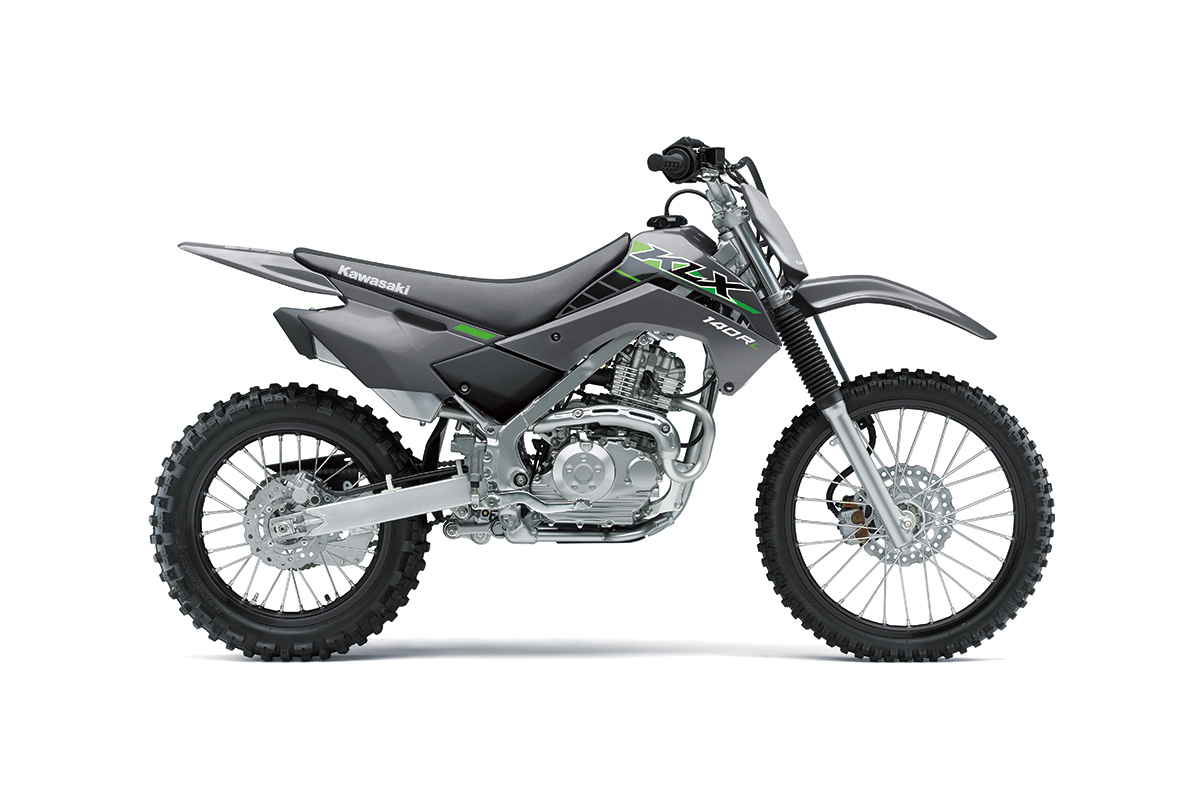

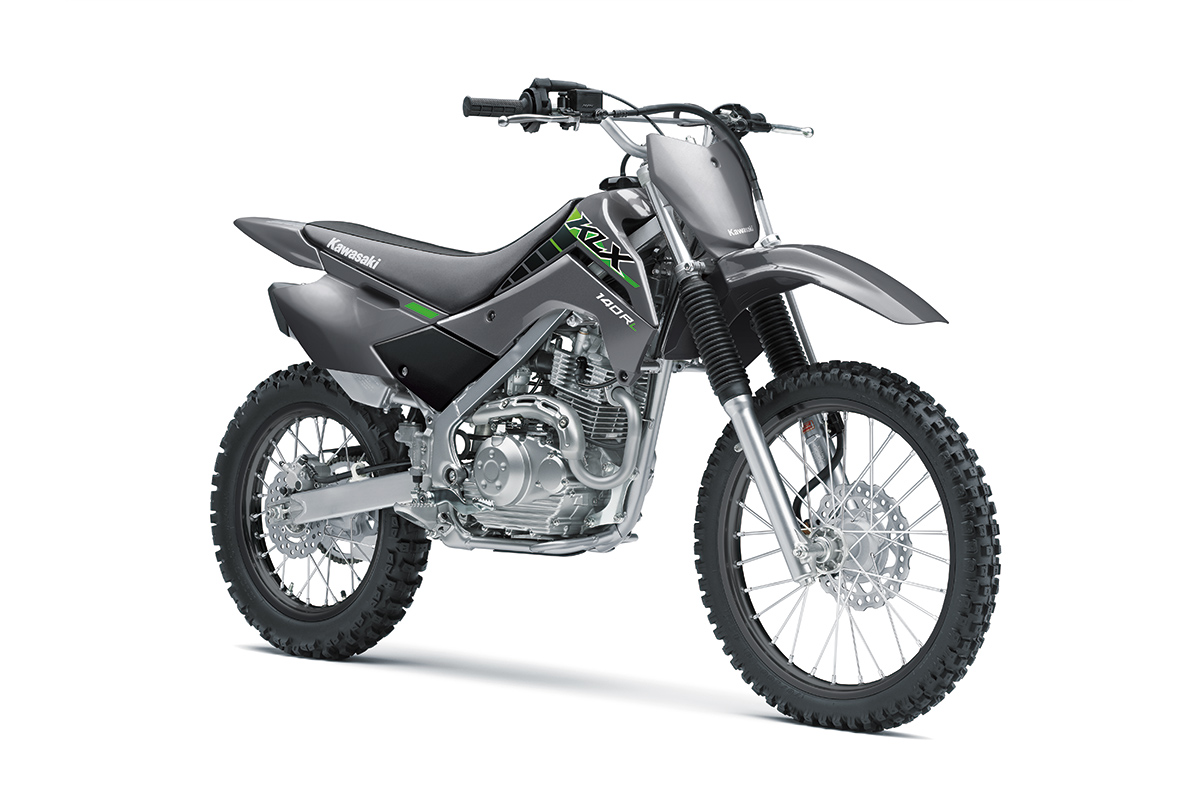

Battle Gray

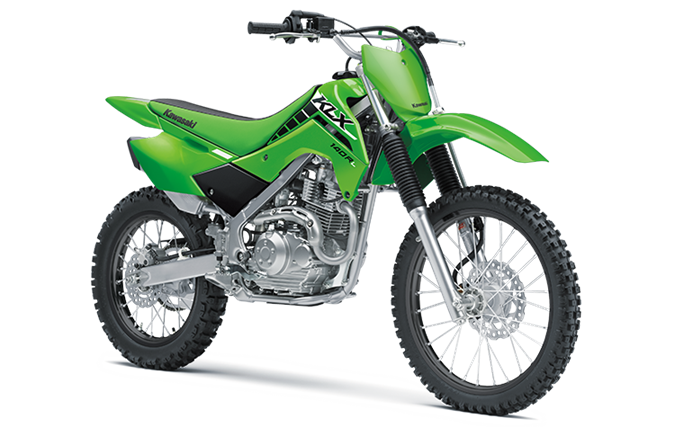

Lime Green

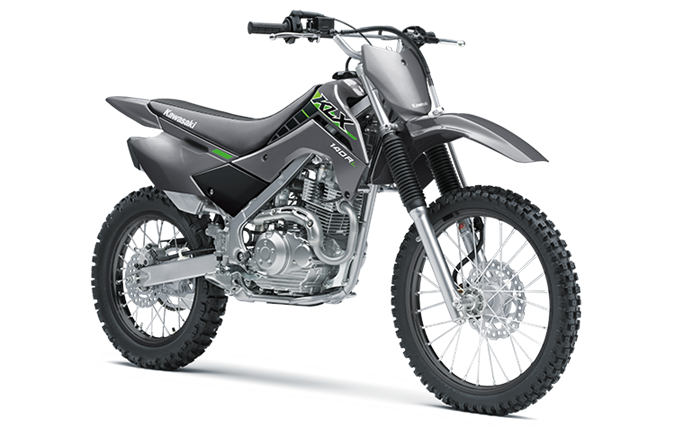

Battle Gray

Larger wheels and
taller seat height
Front and rear
disc brakes
Engine 144cc, air-cooled, 4-stroke, SOHC 2-valve single
Bore x Stroke 58.0 x 54.4 mm
Compression Ratio 9.5:1
Fuel System Carburettor: Keihin PB20
Ignition Digital DC-CDI
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission 5-speed, return
Clutch Wet multi-disc, manual
Final Drive Chain
Frame Perimeter, box-section, high-tensile steel
Front Suspension / Wheel Travel ø33 mm telescopic fork / 180 mm (7.1 in)
Rear Suspension / Wheel Travel Uni Trak, single shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable spring preload / 180 mm (7.1 in)
Rake / Trail 27.0° / 96 mm
Steering Angle (L/R) 41° / 41°
Front Tire 70/100-19 42M
Rear Tire 90/100-16 52M
Front Brake ø220 mm petal disc with dual-piston caliper
Rear Brake ø186 mm petal disc with single-piston caliper
Dimensions (L x W x H) 1,895 x 790 x 1,075 mm (74.6 x 31.1 x 42.3 in)
Wheelbase 1,285 mm (50.6 in)
Road Clearance 255 mm (10.0 in)
Seat Height 800 mm (31.5 in)
Curb Weight* 95 kg (209 lb)
Fuel Capacity 5.8 litres
Warranty 6 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2020 Canadian Kawasaki Motors, Inc.

Specifications subject to change.
