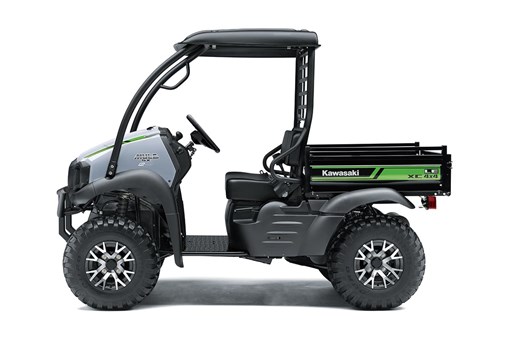

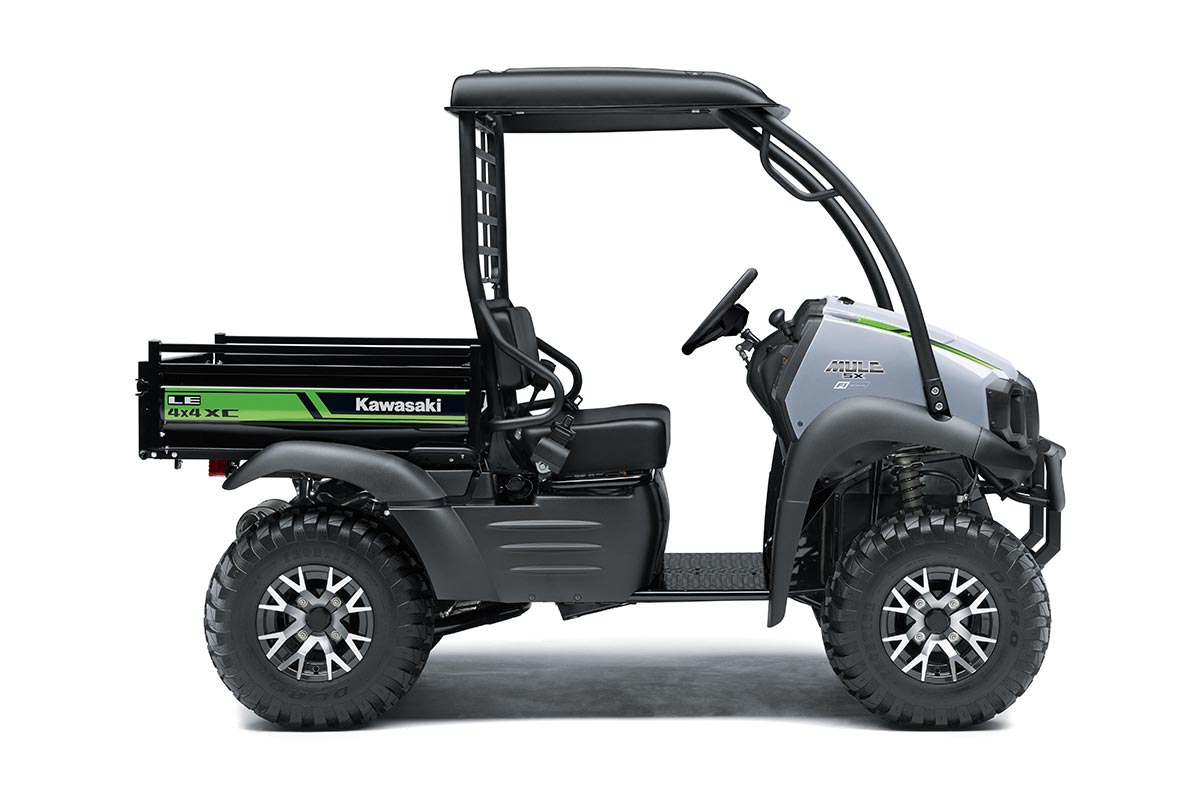

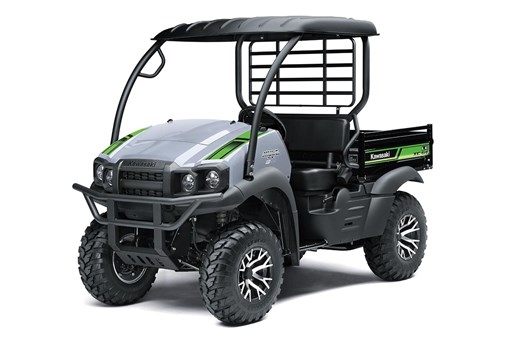

MULE SX 4x4 XC LE

Compact Strength and Versatility

  • MSRP
    $13,199

Destination Charge $1,195

Dealer sets the actual destination charge, your price may vary.

Specifications and pricing are subject to change.

Ice Gray

Ice Gray

Four high-intensity
LED headlights
Aluminum wheels and
special graphics
Engine 401cc, air-cooled, 4-stroke, OHV single
Bore x Stroke 82.0 x 76.0 mm
Compression Ratio 8.6:1
Fuel System Fuel injection: ø23 mm x 1
Ignition Battery & coil
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission 2-speed automatic, forward/reverse
Final Drive Gear, selectable 2WD/4WD, dual-mode differential
Frame Ladder type, tubular steel
Front Suspension / Wheel Travel Independent, MacPherson strut / 78 mm (3.1 in)
Rear Suspension / Wheel Travel Unit swing axle / 79 mm (3.1 in)
Steering Rack and pinion
Rake / Trail 9° / 50 mm
Steering Angle (L/R) 41° (IN) / 35° (OUT), 41° (IN) / 35° (OUT)
Front Tires 26 x 9.00-12
Rear Tires 26 x 9.00-12
Front Brakes Dual hydraulic drums
Rear Brakes Dual hydraulic drums
Parking Brake Mechanical, on rear wheels
Dimensions (LxWxH) 2,710 x 1,335 x 1,905 mm (106.7 x 52.6 x 75.0 in)
Wheelbase 1,780 mm (70.1 in)
Road Clearance 190 mm (7.5 in)
Seat Height 840 mm (33.1 in)
Curb Weight* 498 kg (1,098 lb)
Fuel Capacity 16 litres
Tread (F/R) 1,080 mm (42.5 in) / 1,050 mm (41.3 in)
Turning Radius 3.6 m (11.8 ft)
Cargo Bed Dimensions (LxWxH) 905 x 1,040 x 245 mm (35.6 x 40.9 x 9.6 in)
Cargo Bed Capacity 181 kg (400 lb)
Seating Capacity 2
Vehicle Load Capacity 401 kg (884 lb)
Towing Capacity 500 kg (1,100 lb)
Lighting 4x LED headlights
Instrumentation Digital fuel gauge, hour meter
Warranty 36 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2020 Canadian Kawasaki Motors, Inc.

Specifications subject to change.
